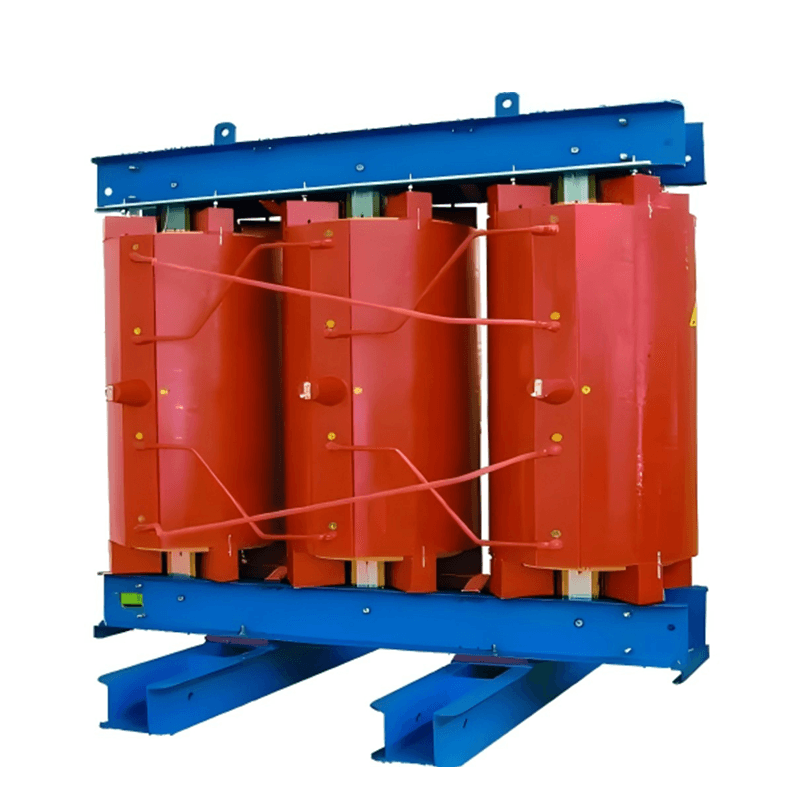

Three winding double split epoxy pouring dry booster

Photovoltaic power generation, as a clean energy source, has developed rapidly both domestically and internationally. The SC(B) three-winding double-split epoxy resin cast dry-type step-up transformer precisely meets the growing power supply demands of photovoltaic power generation. Based on 10KV and 35KV transformers, our company has absorbed advanced technologies and combined them with domestic and international needs to independently develop a series of products. These products feature small size, stable performance, light weight, and convenient installation. They are manufactured using high-quality materials and advanced testing equipment according to strict process procedures. These dry-type transformers possess high mechanical strength, electrical strength, and heat resistance. The products are characterized by high reliability and long service life. They are suitable for photovoltaic power plants. Different protection levels can be configured according to different operating environments.

1. The transformer reaches the inverter's rated power and is equipped with a temperature sensor; this signal can be transmitted to the inverter.

2. The transformer's wiring and installation system requirements comply with local operating conditions, such as ambient temperature and dust protection.

3. The rated voltage of the primary winding matches the power supply voltage at the grid connection point, and the rated voltage of the secondary winding matches the inverter's output voltage.

4. The short-circuit voltage UK between the primary and secondary windings meets system requirements. The short-circuit voltage UK and splitting factor between the two secondary windings also meet system requirements.

5. For each inverter, this transformer has a separate, current-isolated secondary winding.
